100+ Available to dispatch immediately
The MK Metalclad Plus Range is made from heavy gauge steel making it a very tough set of products. This means they are ideal use in factories, workshops, garages and sheds.

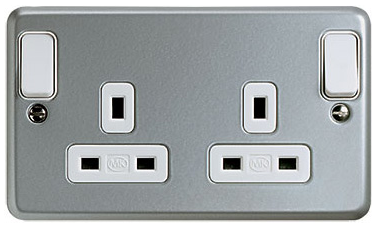

The MK K2945ALM is an Aluminium, 13A, 2 Gang, Double Pole Socket with Outboard Rockers. It comes complete with a back box with 8 20mm knockouts, three in the top, two in the bottom, one in either side and one in base. They are fitted with two earth terminals to provide a double earth facility for use when installations require a high integrity protective connection as specified within BS 7671: 2008. It also has double pole switching (neutral makes first, breaks last).
Earth terminals are fitted in the back box.
Terminal Capacity: 2x6.0mm² stranded (max)
Dimensions: 146x86x47mm
Fixing Centres: 120.6mm
| Wiring Accessories|Description|Product | Socket Outlet |
| Wiring Accessories|Description|Switched/Unswitched | Switched |
| Wiring Accessories|Description|Gangs | 2 Gang |
| Wiring Accessories|Features|Includes 13A Switch Socket? | Y |
| Wiring Accessories|Features|Pole Configuration | Double Pole |
| Wiring Accessories|Features|Pin Shape | Rectangular |
| Wiring Accessories|Features|Mounting | Surface |
| Wiring Accessories|Features|USB | Y |
| Wiring Accessories|Material & Finish|Face Colour | Satin Gold |
| Wiring Accessories|Material & Finish|Rocker Colour | White |
| Wiring Accessories|Dimensions|Mounting Box Minimum Depth | 17 mm |
| Wiring Accessories|Dimensions|Width | 146 mm |
| Wiring Accessories|Dimensions|Height | 86 mm |
| Wiring Accessories|Technical Data|Current Rating | 13 A |
| Wiring Accessories|General|Standards | BS 5733 BS 1363 |
| Dimension | 13A |
| Finish | Aluminium |
| Wiring Accessories|Dimensions|Height (EF000040) | 86 mm |
| Wiring Accessories|Dimensions|Width (EF000008) | 146 mm |
| Wiring Accessories|Technical Data|Current Rating (EF000227) | 13 A |
| Wiring Accessories|Features|Mounting (EF000003) | Surface |
| Wiring Accessories|Dimensions|Height (EF008809) | 86 mm |
| Wiring Accessories|Dimensions|Width (EF008808) | 146 mm |
| Manufacturer | MK Electric - Wiring Devices |
| Brand | Metalclad Plus |
